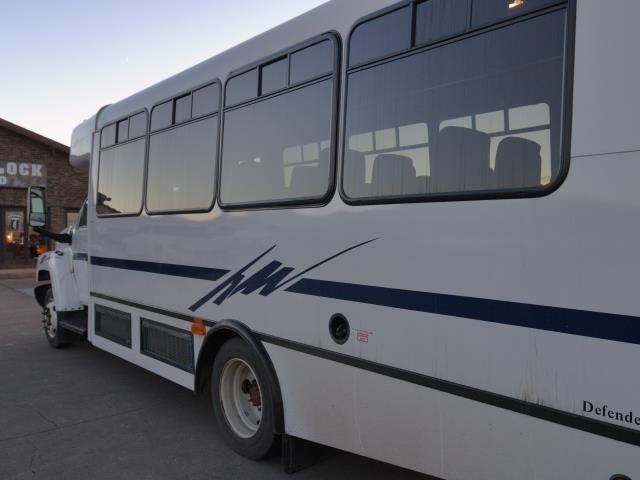

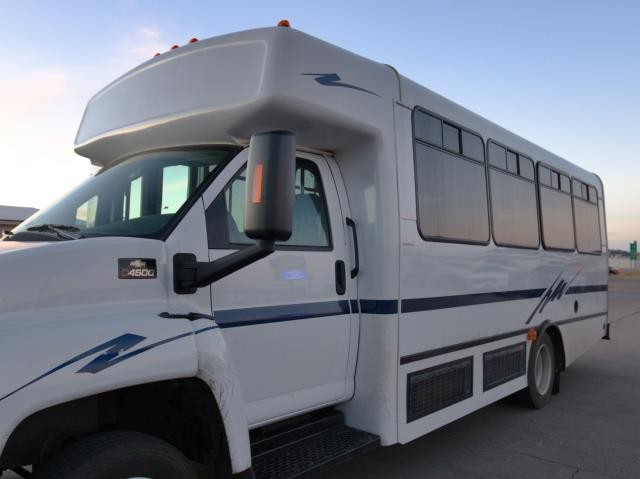

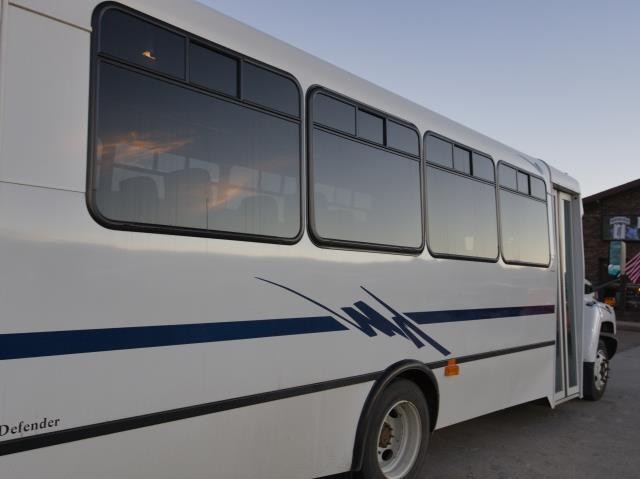

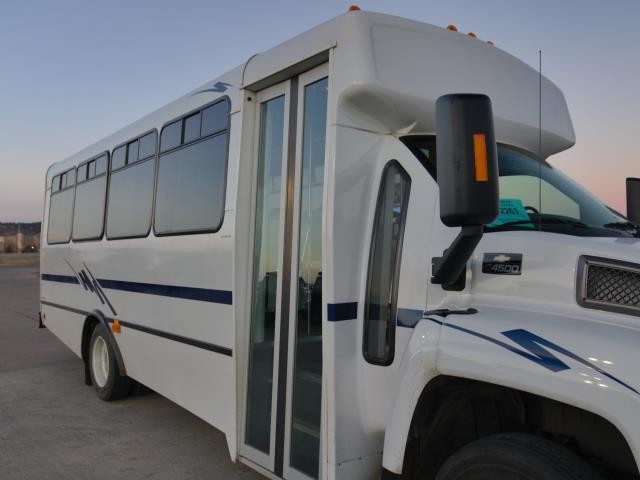

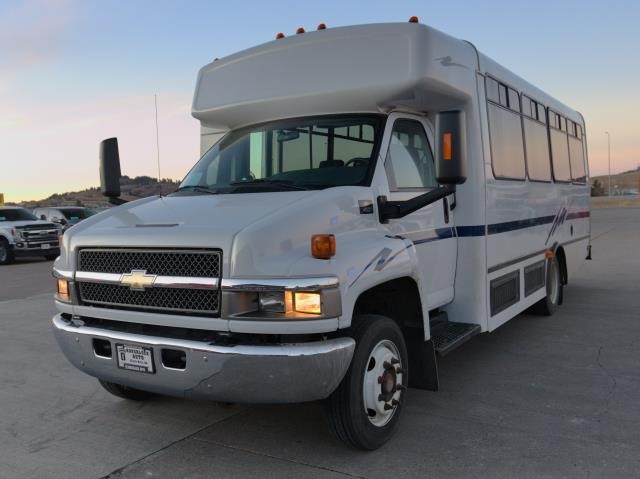

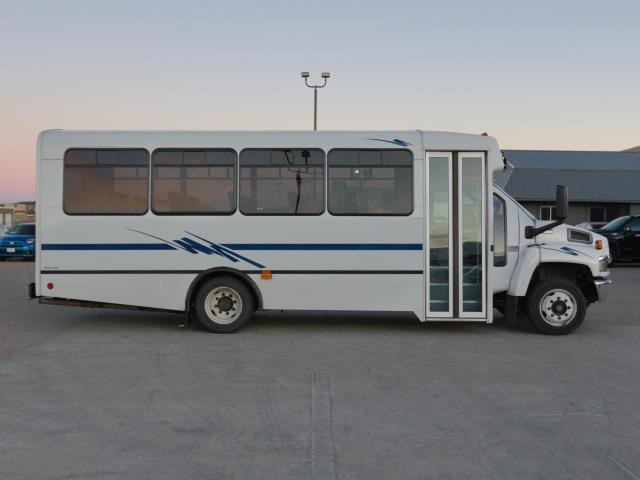

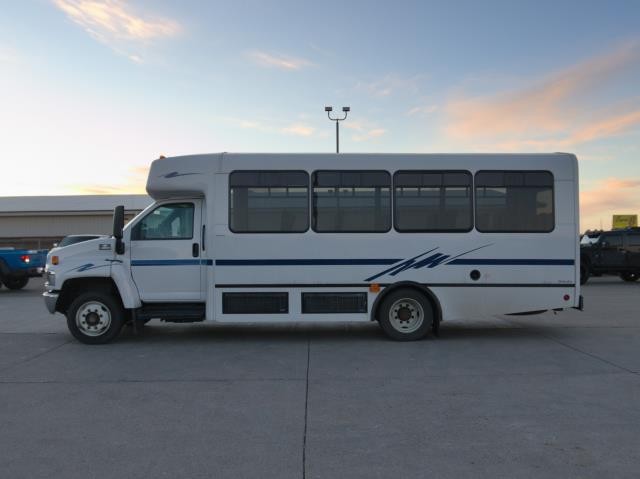

2009 Chevrolet CC4500 25 Passenger Shuttle Bus

MECHANICAL (32)

• GVWR, 16,500 lbs. (7484 kg) capacity - GCWR limited to 26,000 lb. (11,794 kg) (Requires FM7 7000 lbs. (3175 kg) front axle) NOTE: Trucks that are used primarily to tow a trailer may be liable to Federal Excise Tax (FET). A New Law (Highway Transportation Bill HR3) was passed on August 10, 2005 - Check with IRS for guidelines
• Engine, Vortec 8.1L MD gasoline V8, 325 hp (239 kw) @ 4000 rpm and 450 lb-ft torque (610 N-m) @ 2,800 rpm. - Maximum engine speed 5000 rpm. Oil Level Sensor: Warning sensor for low oil levels
• Air cleaner, dry type
• Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
• Road speed governor, controlled by the speed rating of the tires ordered which will be less than or equal to 85 mph (137 kph)
• Alternator, AD244 Delco-Remy 150-amp maximum (N/A with ANM Fire and Rescue or YF2 Ambulance Packages)
• Battery, single, 600 CCA, ACDelco - 115-minute reserve capacity @ 27 degrees C, 600 CCA @ -18 degrees C grounded directly to starter, (Requires gasoline engine)
• Exhaust, side exit exhaust routing forward of right rear wheels. Exhaust system is aluminized 409 stainless steel and with diesel engines includes oxidation catalyst, diesel particulate filter and exhaust gas cooler. Exhaust system is not fully assembled at plant and upfitter is responsible for final installation including attachment of diesel engine exhaust gas cooler (N/A with ANC shuttle bus or B3D school bus package)
• Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: Will delete transmission PTO gear.)
• TranSynd synthetic automatic transmission fluid
• Front axle, 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle, includes 4-piston brake apply calipers. Steering Gear Series: ZF8014
• Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer)
• Front shock absorber, diameter 1.375" (35mm)
• Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
• Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
• Front tread, premium, highway (Requires R4A Goodyear or R4L Michelin)
• Rear axle, single speed, 11,000 lbs. (4990 kg) capacity - full floating, Includes 2-piston brake applied calipers
• Rear wheel drive
• Rear axle ratio, 5.13:1 (Requires gasoline engine)
• Rear suspension, multi-leaf, 11,000 lbs. (4990 kg) capacity (Requires GL4 single speed rear axle)
• Rear suspension brackets are riveted to frame in lieu of bolts
• Rear shock absorber not desired (N/A with tapered leaf springs)

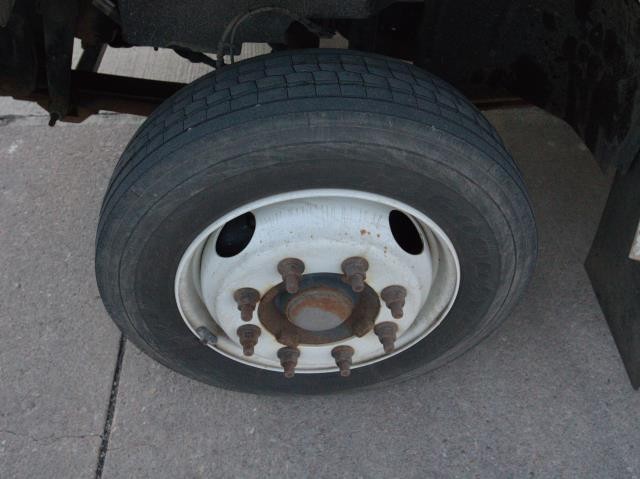

• Rear tire size, 225/70R19.5F - 13,660 lbs. (6196 kg) capacity, (With S4A Goodyear, requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin, requires S3C rear premium highway tread or S3J rear highway traction tread)
• Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
• Rear tread, premium, highway (Requires S4A Goodyear or S4L Michelin)
• Wheelbase, 166" (421.6 cm) - with 100" (254 cm) CA with 171" (434.3 cm) CE. Includes a 6 mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
• Frame, 6mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
• Fuel tank, single, 40-gallon (151L) fuel capacity - gas or diesel, located behind rear axle with fuel fill neck through frame rail and a black tethered fuel cap with gasoline engine and green un-tethered fuel cap with diesel engines. DRIVER SIDE FILL NECK ONLY. NO AUXILIARY PORTS. MINIMUM OVERHANG = 60" (5 FEET)
• Fuel sender assembly. Robust fuel pump
• Tethered fuel cap
• Steering, power - ZF variable ratio power
• Park brake, foot pedal operated transmission mounted drum brake

EXTERIOR (13)

• Paint scheme, solid, upper color, Summit White
• Paint scheme, solid, lower color, Summit White
• Exterior roof drip moldings
• Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
• Steps under cab doors
• Front mud flaps
• Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
• Roof marker lamps
• Windows, Solar-Ray tinted. Light tinted windshield and side window glass with light transmissity of 70%
• Mirrors, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
• Windshield wipers, 2-speed and intermittent, with pulse washers
• Provisions for mounting front license plate
• Positive door stops

INTERIOR (19)

• Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter vinyl or 69C Very Dark Pewter cloth)
• Trim console - located next to driver's seat and two cupholders
• Molded vinyl floor covering
• Steering wheel 16"
• Two sided single common key for doors and ignition
• Headlamp warning buzzer
• Warning tone, key-in-ignition
• Tachometer
• Electronic engine hour meter
• Engine "Check Gauges" telltale light and buzzer, oil pressure gauge
• Gauges, low oil pressure and coolant level, high coolant and engine oil temperature

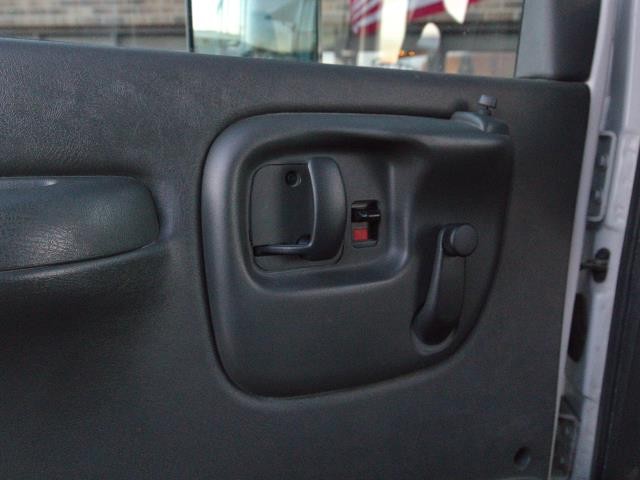

• Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
• Stepwell storage areas at each door front and rear. Includes storage cover.
• Cloth headliner
• Sunshades, passenger side and driver side, cloth-covered
• Coat hooks (2) located on cab back panel
• Dome lamp switches included on driver and passenger doors
• Provisions for stereo - Includes AM/FM antenna, lead wiring for speakers, and separate door chime module (N/A with ZQ2 power convenience option)
• Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
